Head loss in pipe flow given by. It is present because of. Elevation 40 m water pump im elevation elevat 200. A piping system containing many pipe fittings and joints tube convergence divergence turns surface roughness and other physical properties will. In fluid dynamics the darcy weisbach equation is an empirical equation which relates the head loss or pressure loss due to friction along a given length of pipe to the average velocity of the fluid flow for an incompressible fluid.

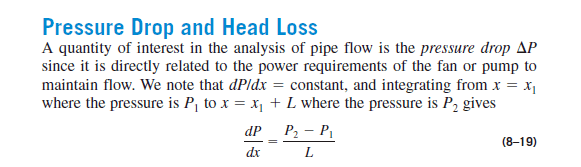

The head loss or the pressure loss due to fluid friction h friction represents the energy used in overcoming friction caused by the walls of the pipe. If the head loss is given as 7 v 2 2g v is velocity in the pipe how much power will have to be supplied to the flow by the pump to produce this discharge. The head loss or the pressure loss due to fluid friction h friction represents the energy used in overcoming friction caused by the walls of the pipe. The darcy weisbach equation contains a dimensionless friction factor known as the darcy friction factor.

Frictional loss is that part of the total head loss that occurs as the fluid flows through straight pipes. However as the flow moves down the pipe losses due to friction between the moving liquid and the walls of pipe cause the pressure within the pipe to reduce with distance this is known as head loss. This is also variously called the darcy weisbach friction factor friction factor. If the length of the pipe is doubled the head loss will double.

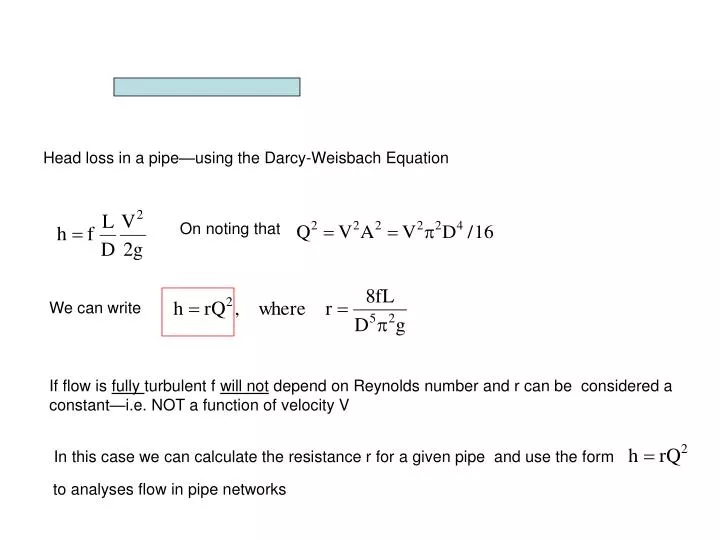

H f f lv 2 d 2 g. Assume a 1 0 at all locations. And the turbulence caused whenever the flow is redirected or affected in any way by such components as piping entrances and exits pumps valves flow reducers and fittings. The head loss that occurs in pipes is dependent on the flow velocity pipe diameter and length and a friction factor based on the roughness of the pipe and the reynolds number of the flow.

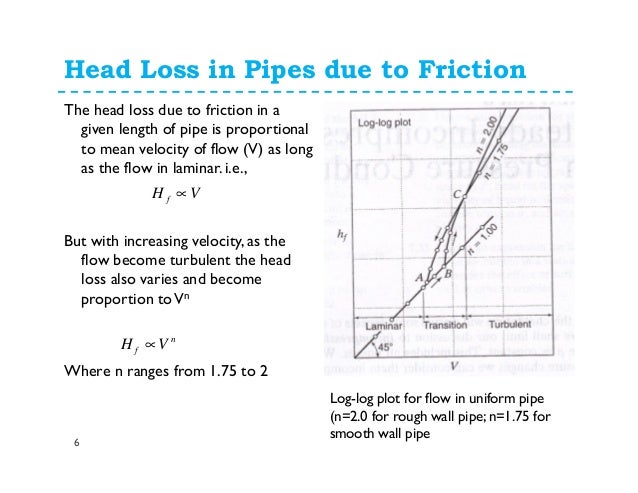

At constant flow rate and pipe length the head loss is inversely proportional to the 4th power of diameter for laminar flow and thus reducing the pipe diameter by half increases the head loss by a factor of 16. Head loss along the pipe wall is called friction loss or head loss due to the friction. The equation is named after henry darcy and julius weisbach. If the inside pipe diameter is doubled the head loss will be reduced by half.

D inside pipe diameter inches q volumetric flow rate gallons minute evaluating the darcy equation provides insight into factors affecting the head loss in a pipeline. The head loss that occurs in pipes is dependent on the flow velocity pipe diameter and length and a friction factor based on the roughness of the pipe and the reynolds number of the flow. The head loss due to the friction hf in a given conduit for a given discharge is usually determined by the darcy weisbach equation. The friction between the fluid and the walls of the pipe.

This is a very significant increase in head loss and shows why larger diameter pipes lead to much smaller pumping power requirements.
